MAX3010x Pulseoximetermodule (Teil 3)

#include <MAX3010x.h>
#include "filters.h"

// Sensor (adjust to your sensor type)
MAX30105 sensor;
const auto kSamplingRate = sensor.SAMPLING_RATE_400SPS;
const float kSamplingFrequency = 400.0;

// Finger Detection Threshold and Cooldown
const unsigned long kFingerThreshold = 10000;
const unsigned int kFingerCooldownMs = 500;

// Edge Detection Threshold (decrease for MAX30100)
const float kEdgeThreshold = -2000.0;

// Filters
const float kLowPassCutoff = 5.0;
const float kHighPassCutoff = 0.5;

// Averaging
const bool kEnableAveraging = true;
const int kAveragingSamples = 50;
const int kSampleThreshold = 5;

void setup() {
  Serial.begin(9600);

  if(sensor.begin() && sensor.setSamplingRate(kSamplingRate)) {
    Serial.println("Sensor initialized");
  }
  else {
    Serial.println("Sensor not found");
    while(1);
  }
}

// Filter Instances
HighPassFilter high_pass_filter(kHighPassCutoff, kSamplingFrequency);
LowPassFilter low_pass_filter(kLowPassCutoff, kSamplingFrequency);
Differentiator differentiator(kSamplingFrequency);
MovingAverageFilter<kAveragingSamples> averager;

// Timestamp of the last heartbeat
long last_heartbeat = 0;

// Timestamp for finger detection
long finger_timestamp = 0;
bool finger_detected = false;

// Last diff to detect zero crossing
float last_diff = NAN;
bool crossed = false;
long crossed_time = 0;

void loop() {
  auto sample = sensor.readSample(1000);
  float current_value = sample.red;

  // Detect Finger using raw sensor value
  if(sample.red > kFingerThreshold) {
    if(millis() - finger_timestamp > kFingerCooldownMs) {
      finger_detected = true;
    }
  }
  else {
    // Reset values if the finger is removed
    differentiator.reset();
    averager.reset();
    low_pass_filter.reset();
    high_pass_filter.reset();

    finger_detected = false;
    finger_timestamp = millis();
  }

  if(finger_detected) {
    current_value = low_pass_filter.process(current_value);
    current_value = high_pass_filter.process(current_value);
    float current_diff = differentiator.process(current_value);

    // Valid values?
    if(!isnan(current_diff) && !isnan(last_diff)) {

      // Detect Heartbeat - Zero-Crossing
      if(last_diff > 0 && current_diff < 0) {
        crossed = true;
        crossed_time = millis();
      }

      if(current_diff > 0) {
        crossed = false;
      }

      // Detect Heartbeat - Falling Edge Threshold
      if(crossed && current_diff < kEdgeThreshold) {
        if(last_heartbeat != 0 && crossed_time - last_heartbeat > 300) {
          // Show Results
          int bpm = 60000/(crossed_time - last_heartbeat);
          if(bpm > 50 && bpm < 250) {
            // Average?
            if(kEnableAveraging) {
              int average_bpm = averager.process(bpm);

              // Show if enough samples have been collected
              if(averager.count() > kSampleThreshold) {

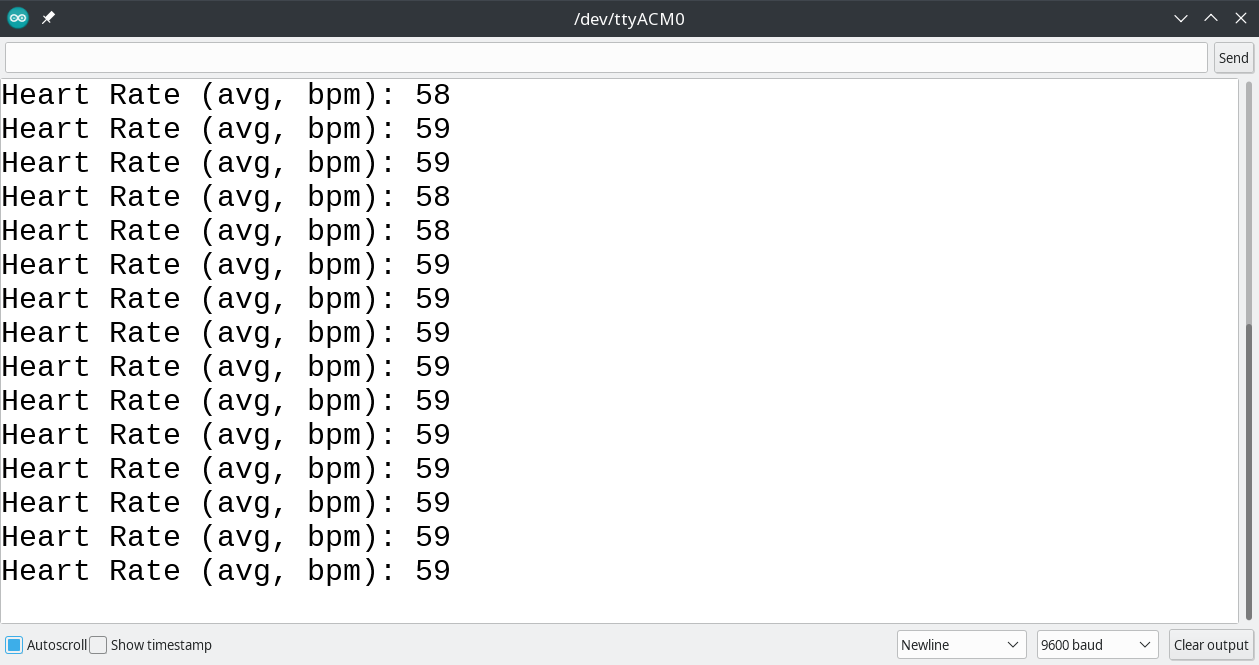

                Serial.print("Heart Rate (avg, bpm): ");
                Serial.println(average_bpm);
              }
            }
            else {
              Serial.print("Heart Rate (current, bpm): ");
              Serial.println(bpm);
            }
          }
        }

        crossed = false;
        last_heartbeat = crossed_time;
      }
    }

    last_diff = current_diff;
  }
}

#ifndef FILTERS_H
#define FILTERS_H

/**
 * @brief High Pass Filter
 */
class HighPassFilter {
  const float kX;
  const float kA0;
  const float kA1;
  const float kB1;
  float last_filter_value_;
  float last_raw_value_;
public:
  /**
   * @brief Initialize the High Pass Filter
   * @param samples Number of samples until decay to 36.8 %
   * @remark Sample number is an RC time-constant equivalent
   */
  HighPassFilter(float samples) :
    kX(exp(-1/samples)),
    kA0((1+kX)/2),
    kA1(-kA0),
    kB1(kX),
    last_filter_value_(NAN),
    last_raw_value_(NAN){}

  /**
   * @brief Initialize the High Pass Filter
   * @param cutoff Cutoff frequency
   * @pram sampling_frequency Sampling frequency
   */
  HighPassFilter(float cutoff, float sampling_frequency) :
    HighPassFilter(sampling_frequency/(cutoff*2*PI)){}

  /**
   * @brief Applies the high pass filter
   */
  float process(float value) {
    if(isnan(last_filter_value_) || isnan(last_raw_value_)) {
      last_filter_value_ = 0.0;
    }
    else {
      last_filter_value_ =
        kA0 * value
        + kA1 * last_raw_value_
        + kB1 * last_filter_value_;
    }

    last_raw_value_ = value;
    return last_filter_value_;
  }

  /**
   * @brief Resets the stored values
   */
  void reset() {
    last_raw_value_ = NAN;
    last_filter_value_ = NAN;
  }
};

/**
 * @brief Low Pass Filter
 */
class LowPassFilter {
  const float kX;
  const float kA0;
  const float kB1;
  float last_value_;
public:
  /**
   * @brief Initialize the Low Pass Filter
   * @param samples Number of samples until decay to 36.8 %
   * @remark Sample number is an RC time-constant equivalent
   */
  LowPassFilter(float samples) :
    kX(exp(-1/samples)),
    kA0(1-kX),
    kB1(kX),
    last_value_(NAN){}

  /**
   * @brief Initialize the Low Pass Filter
   * @param cutoff Cutoff frequency
   * @pram sampling_frequency Sampling frequency
   */
  LowPassFilter(float cutoff, float sampling_frequency) :
    LowPassFilter(sampling_frequency/(cutoff*2*PI)){}

  /**
   * @brief Applies the low pass filter
   */
  float process(float value) {
    if(isnan(last_value_)) {
      last_value_ = value;
    }
    else {
      last_value_ = kA0 * value + kB1 * last_value_;
    }
    return last_value_;
  }

  /**
   * @brief Resets the stored values
   */
  void reset() {
    last_value_ = NAN;
  }
};

/**
 * @brief Differentiator
 */
class Differentiator {
  const float kSamplingFrequency;
  float last_value_;
public:
  /**
   * @brief Initializes the differentiator
   */
  Differentiator(float sampling_frequency) :
    kSamplingFrequency(sampling_frequency),
    last_value_(NAN){}

  /**
   * @brief Applies the differentiator
   */
  float process(float value) {
      float diff = (value-last_value_)*kSamplingFrequency;
      last_value_ = value;
      return diff;
  }

  /**
   * @brief Resets the stored values
   */
  void reset() {
    last_value_ = NAN;
  }
};

/**
 * @brief MovingAverageFilter
 * @tparam buffer_size Number of samples to average over
 */
template<int kBufferSize> class MovingAverageFilter {
  int index_;
  int count_;
  float values_[kBufferSize];
public:
  /**
   * @brief Initalize moving average filter
   */
  MovingAverageFilter() :
    index_(0),
    count_(0){}

  /**
   * @brief Applies the moving average filter
   */
  float process(float value) {
      // Add value
      values_[index_] = value;

      // Increase index and count
      index_ = (index_ + 1) % kBufferSize;
      if(count_ < kBufferSize) {
        count_++;
      }

      // Calculate sum
      float sum = 0.0;
      for(int i = 0; i < count_; i++) {
          sum += values_[i];
      }

      // Calculate average
      return sum/count_;
  }

  /**
   * @brief Resets the stored values
   */
  void reset() {
    index_ = 0;
    count_ = 0;
  }

  /**
   * @brief Get number of samples
   * @return Number of stored samples
   */
  int count() const {
    return count_;
  }
};

#endif // FILTERS_H

#include <MAX3010x.h>

// Sensor (adjust to your sensor type)
MAX30105 sensor;

void setup() {
  Serial.begin(115200);

  if(sensor.begin() && sensor.setSamplingRate(sensor.SAMPLING_RATE_400SPS)) {
    Serial.println("Sensor initialized");
  }
  else {
    Serial.println("Failed to initialize sensor or to set sampling rate");
    while(1);
  }
}

void loop() {
  auto sample = sensor.readSample(1000);
  Serial.println(sample.red);
}
